1290 co2 laser cutting engraving machine for acrylic mdf wood
1.Technical Prameters of laser cutting engraving machine
Model |
JK-1290L( CO2 laser ) |
|
1 |
Working area |
1200mm*900mm |
2 |
Laser power |
80/100/130/150W RECI |
3 |
Engraving speed |
0-64000mm/min |
4 |
Cutting Speed |
0-36000mm/min |
5 |
Preposition accuracy |
±0.1mm |
6 |
Cutting Platform |
Blade or Honeycomb table |
7 |
Driving system |
Stepper motors |
8 |
Cooling mode |
Circulating-water cooling and protection system |
9 |
Minimum letter size |
Chinese Character: 2.0mm×2.0mm, |
10 |
Power Supply |
AC220V 50HZ |
11 |
Dictate format |
BMP,HPGL,PLT,DST,DXP,AL |
12 |
Compatible Software |
CorelDraw ,AutoCAD transmit directly |
13 |
Operating Temperature |
5°C-40°C |
14 |
N.W/G.W |
400kg/450kg |
15 |
Packing dimension |
1950*1450*1350mm |

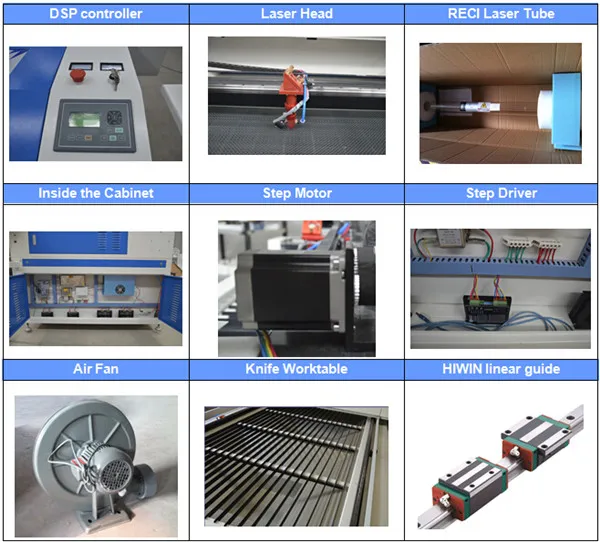

2.Machine parts of laser cutting engraving machine
3.Application of laser cutting engraving machine
Applicable materials:
wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass and other nonmetal materials
Applicable industries:
1) Advertising industry: Double-colored board and Label carving, Organic glass
carving and cutting
2) Carved gifts and Crafts industry: wood/Granite, Bamboo, Ivory, Bone, Leather
3) Leather clothing industry: Complex characters and pattern carving,Synthetic Leather,
Man-made Leather, Cloth.
4) Arcitectural model industry: ABS board cutting, Model carving
5) Packing and Printing Industry: Rubber,Plastic board, Double-layered board, Model
cutting board.
4.Working samples for laser cutting engraving machine
5.Services of our laser cutting engraving machine
1. 15 months guarantee for our machines except laser tube with 8 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.
