1 Machine detailed parameters
Model | JK-1318S-2(with 2 spindle heads) |
Machine body | Heavy duty T-slot |
Working area(XYZ axis) | 1300*1800*200mm(650*1800*200mm/head) |
Table | Aluminum table +15mmABS board |
X Y Z rail | PMI/HIWIN linear square guide rail |
X Y transmission | Rack and pinion |
Z transmission | High precision ball screw |
Spindle | 3.2kw*2 water cooling spindle |
Spindle speed | 24000rpm |
Inverter | Fuling inverter |
Motor | Stepper motor |
Driver | Stepper driver |
Transformer | Yes |
Lubrication | Yes |
Max. speed | 30m/min |
Max. working speed | 20m/min |
Voltage | AC 380V 50HZ three phase |
Collets | ER20 3.175-14mm |
Repeat reposition accuracy | 0.025mm |
Max. cutting thickness | <=20mm |
Cover | X Y Z cover |
Command | G code |
Software | Artcam/ Ucancam |
Control system | Ncstudio |
Remark | Optional driving mode: |
Servo motor and driver | |
Optional control system: | |
DSP |
2 CNC stone engraving machine in factory
3 CNC stone engraving machine features
1. Hiwin square rail and sliding block
1).We adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails ,self lubricating
sliding block. This ensures equal force in all directions and accuracy and strength of the machine.
2).Comparing with the round rail, the square rails has higher precision, less wear and tear. Square rails
apply to high-speed move and greatly reduce the drive horsepower the machine required.
What’s more, it can bear the load from left and right/up and down at the same time.
2. stepper motor
1).Won't lose step when it work,guarantee the positional accuracy of the motor.
4).Vibration phenomenon significantly reduced, motor run more smoothly.
3. DSP controlling system,easy to learn and easy to use
4. TBI Ball screw
It is composed of screw, nut and ball, and its function is to convert rotary motion to linear motion.
5.Japanese Omron limit switch.
Intelligent processing limited switch can prevent mechanical impact caused by the improper files or
operation. When the machine gets out of control, it can block the spindle moving.
The hard limit switches are at the both end of the rail.

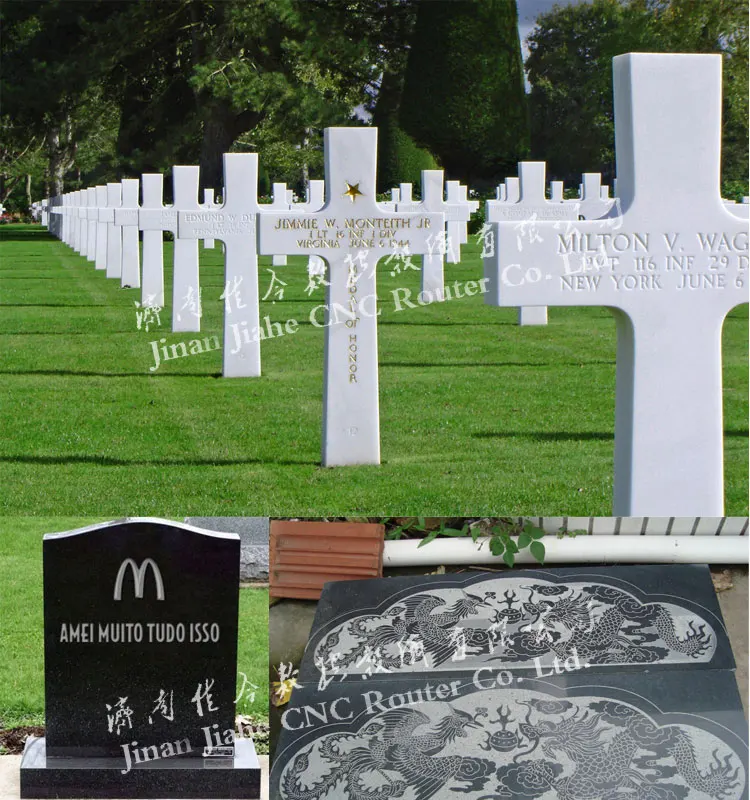

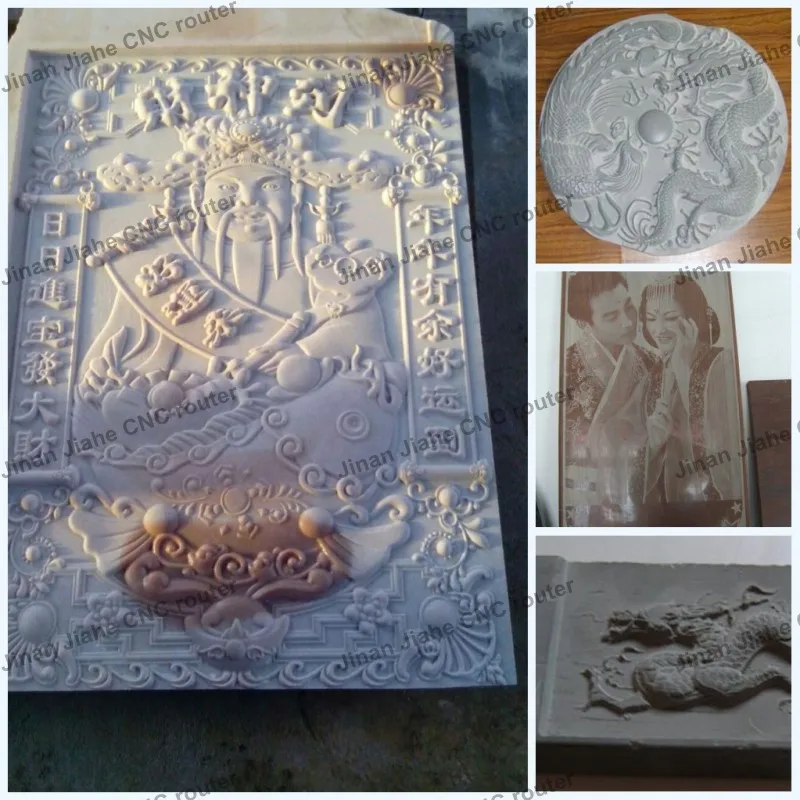

4 CNC stone engraving machine samples:
JK-1325S Stone CNC Router adopts heavy-duty machine structure for heavy stone and high precision linear guide rails and gear racks. This machine can work for engraving letters and designs on marble,granite,etc all stone materials.
2).Speed performance increased about 30%,improve the equipment speed heavily.
3).Motor heat fell down 30%, prolong the life time of the motor.
5).Adopted the current control system technology,save power consumption.
1).High sensitivity. (no vibration, no crawling, synchronicity is good).
2).High positioning accuracy. (even the letters of 1mm can be clearly discernible.)
3).Long service life. (is more than 4 times than the normal ball screw.)
Our services
"1.Technical support online service provided.
2.Technical files service provided.
3.On-site training service provided.
4.Spare parts replacement and repair service provided."
